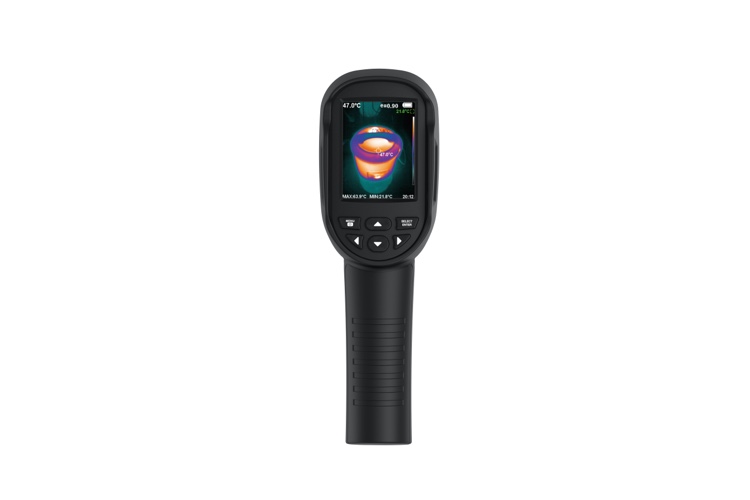

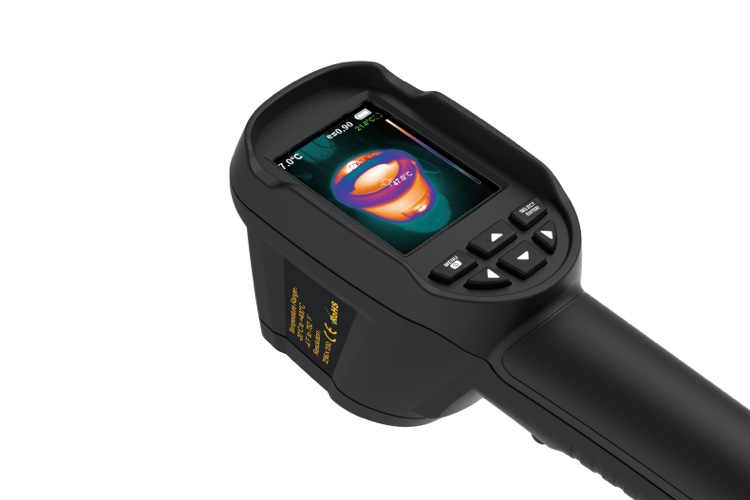

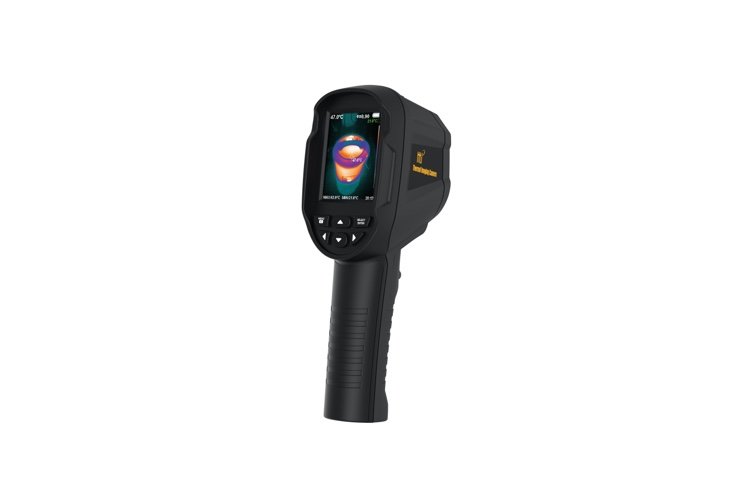

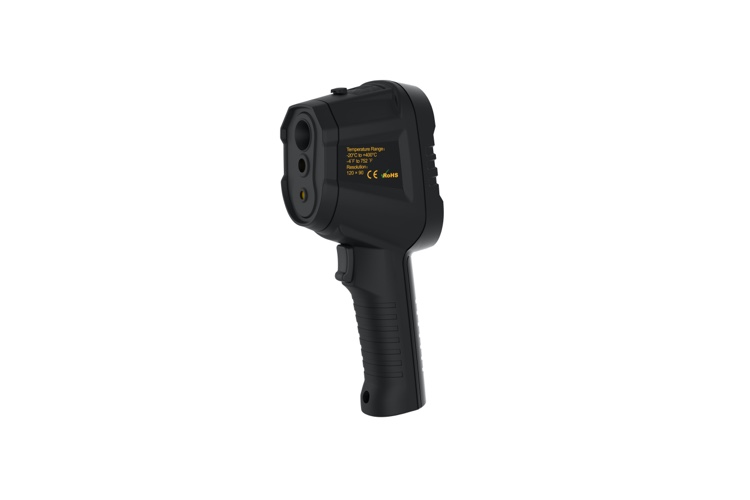

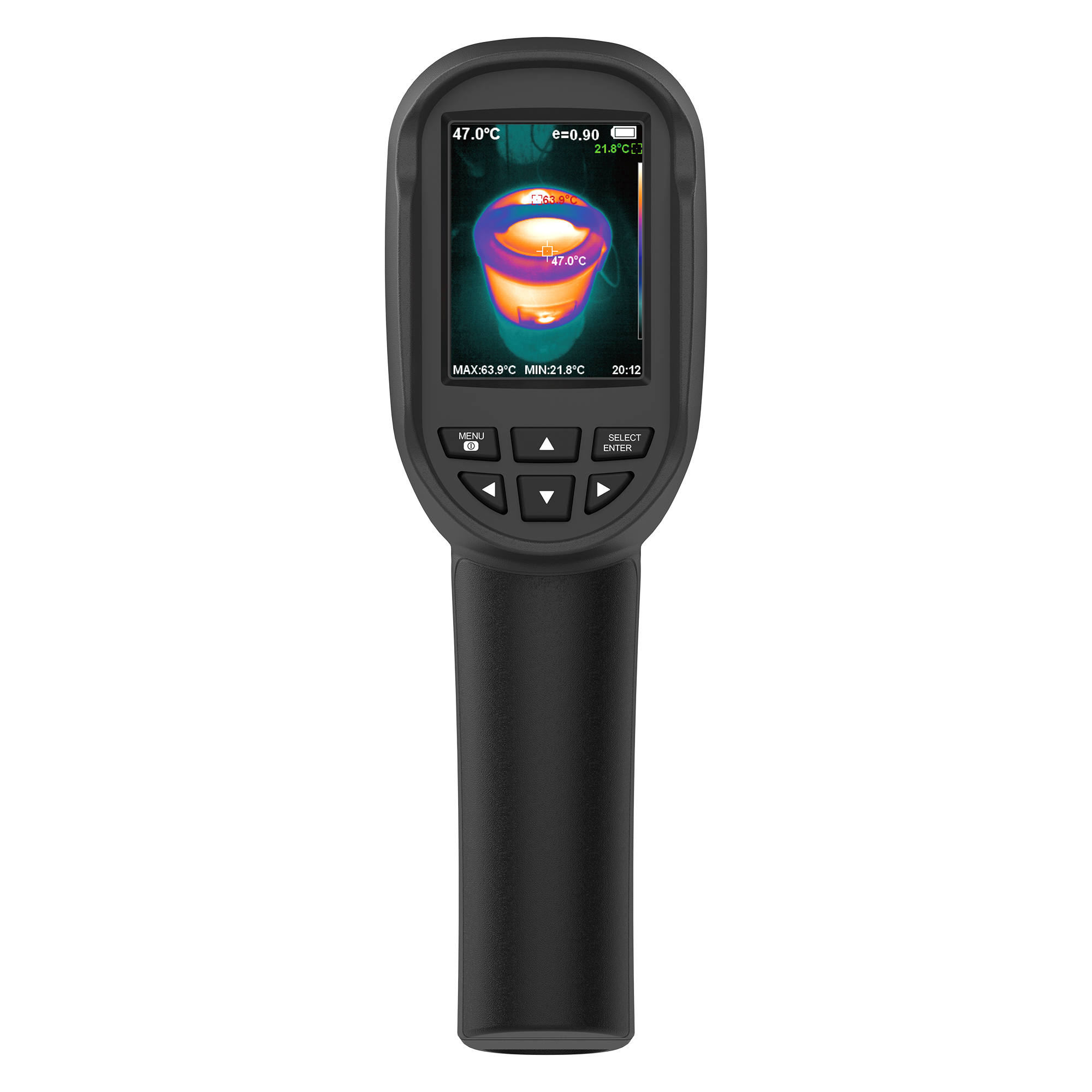

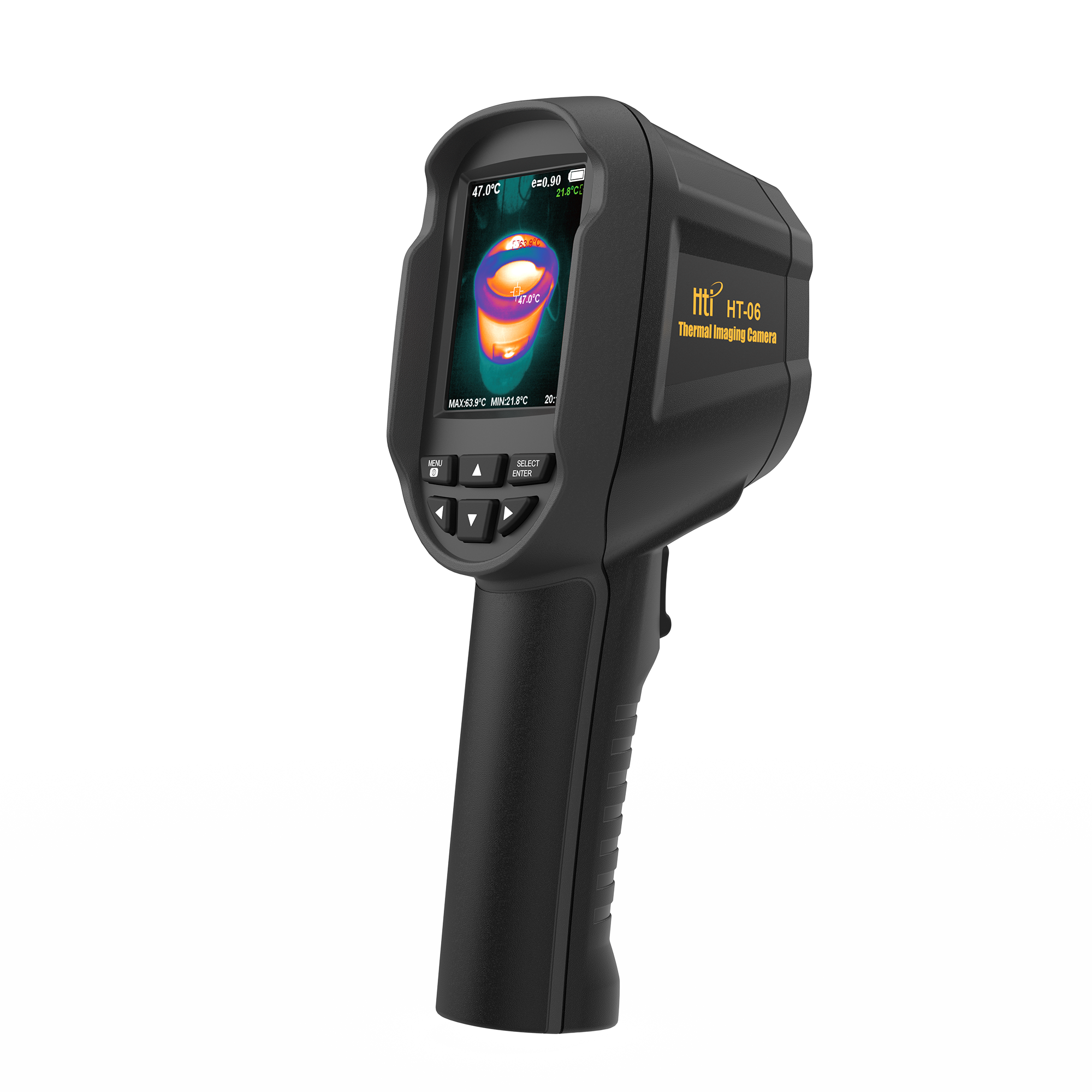

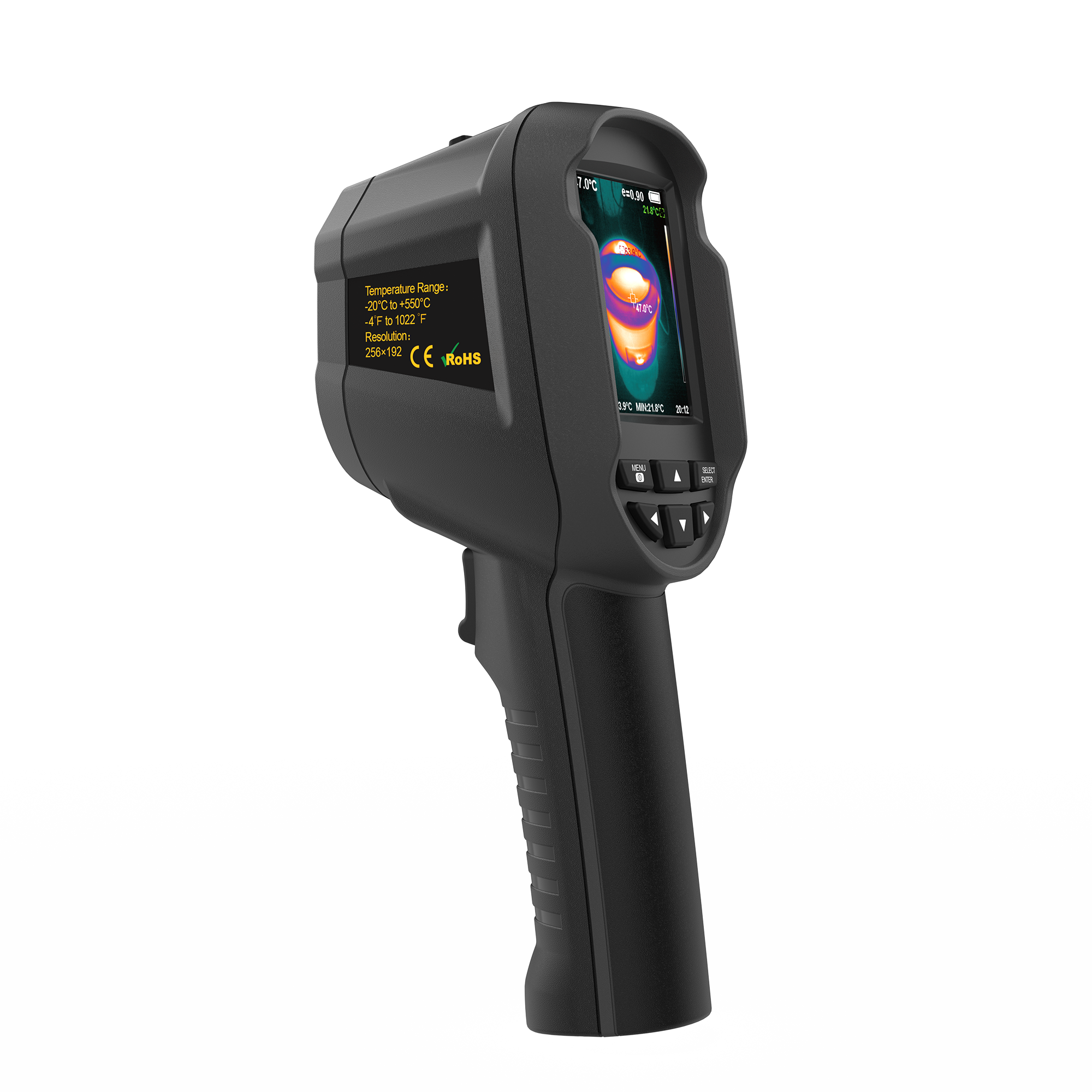

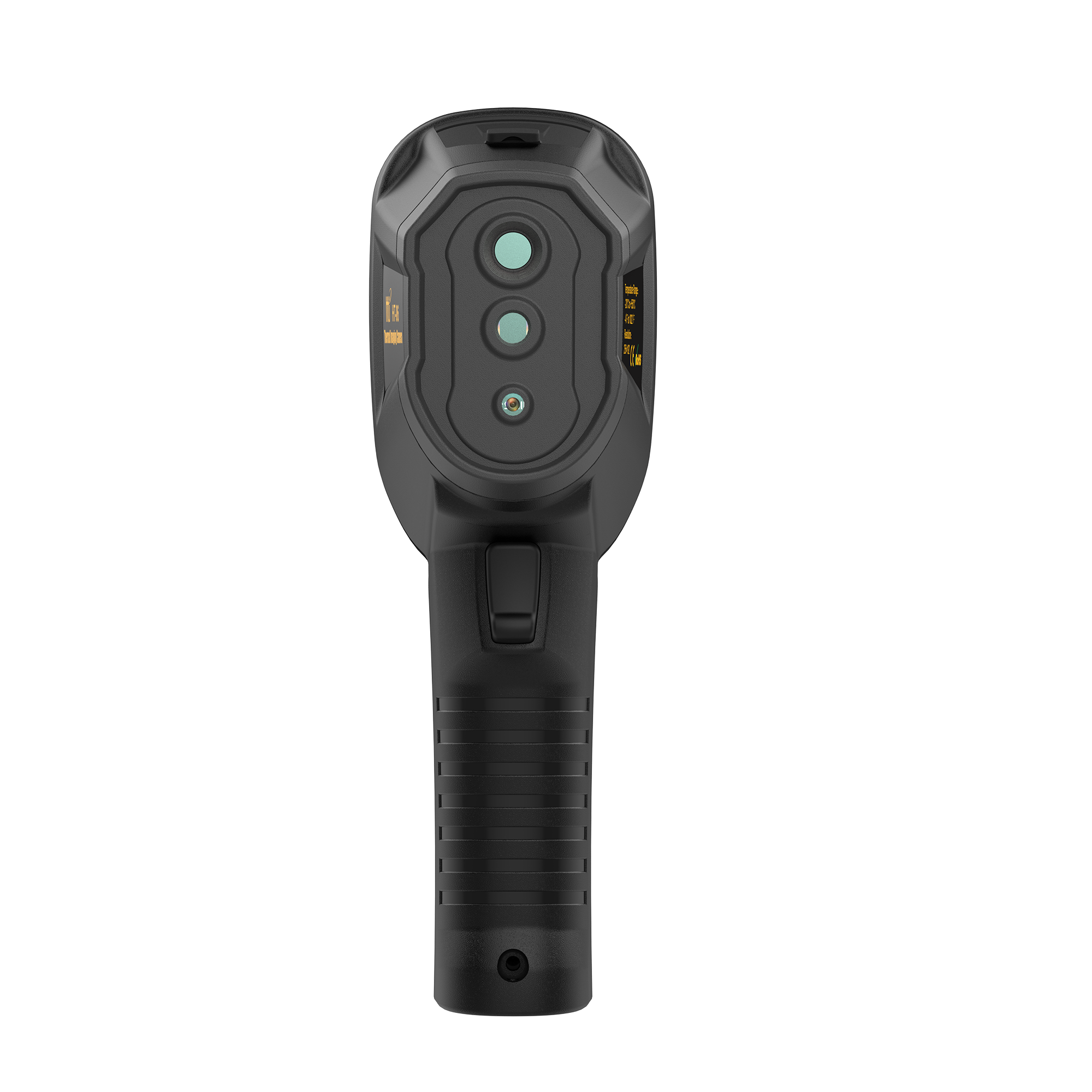

HT 06_Handheld infrared thermal imager

 WIFI

Widely used in many areas such as medical, policing, firefighting,archaeology, transportation, agriculture and geology, this product is ideal for electricians and maintenance technicians to quickly locate problem areas.

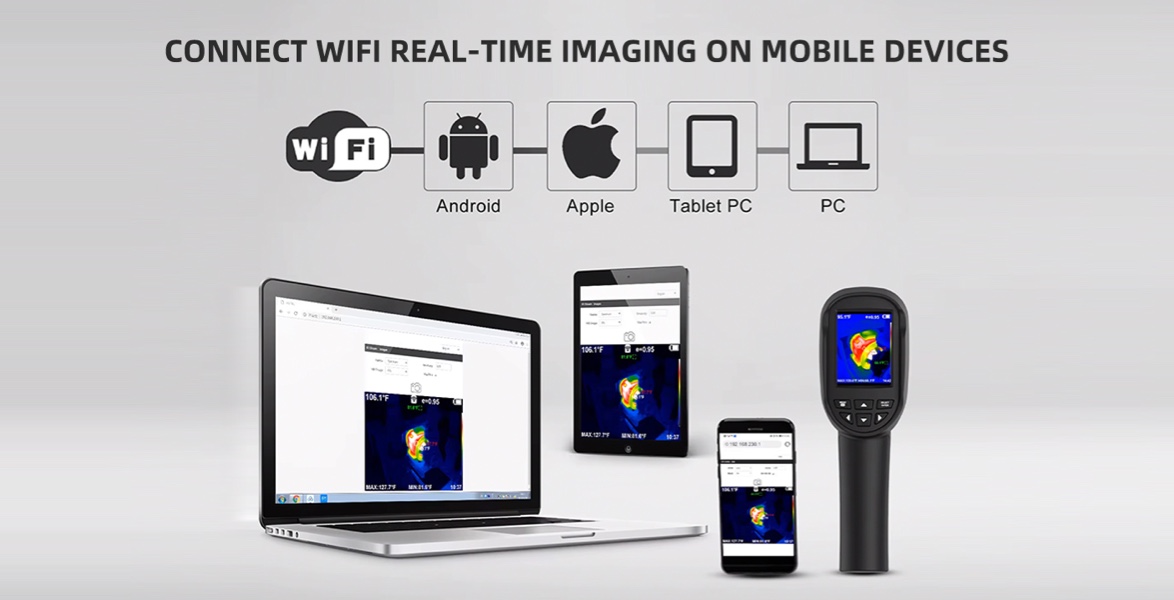

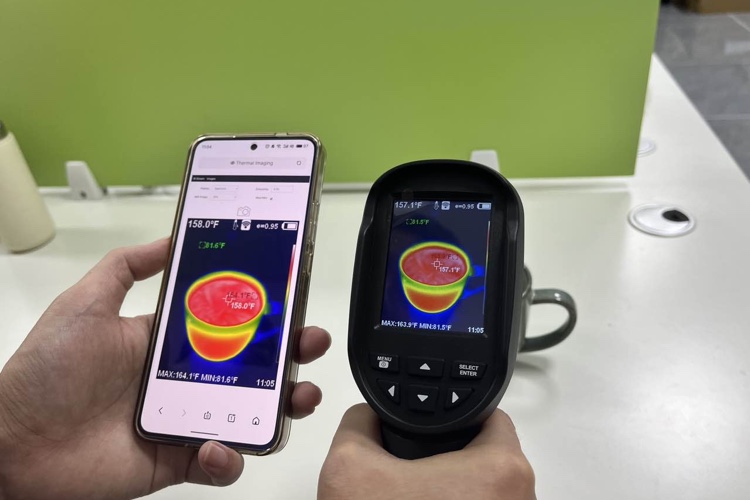

WIFI support
Self-contained software analysis and video photography
Center/hot and cold spot tracking available

 Product manual 

256+640 HD Fusion, Smart 5-Color Display, Dual-Spectrum Power in One Device!

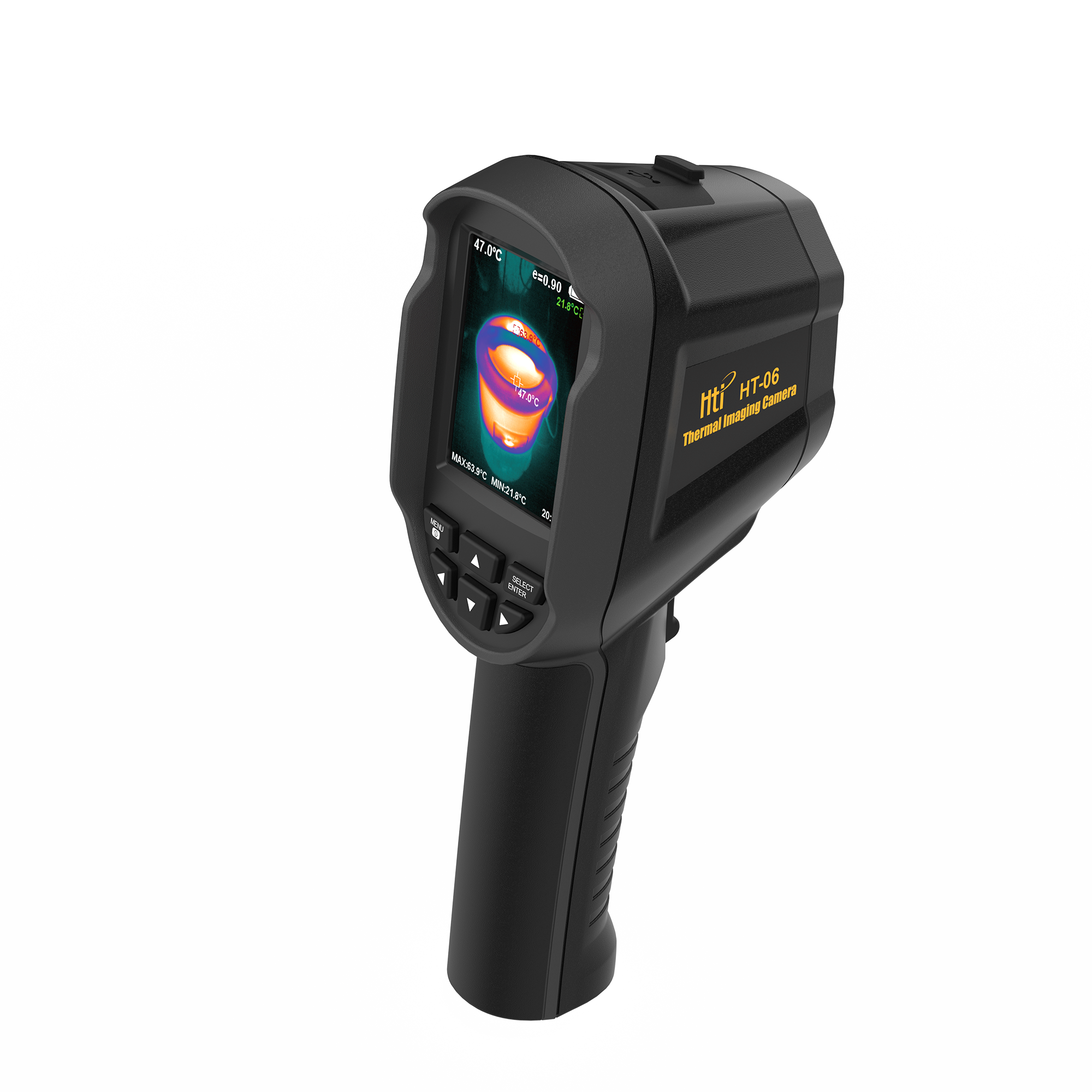

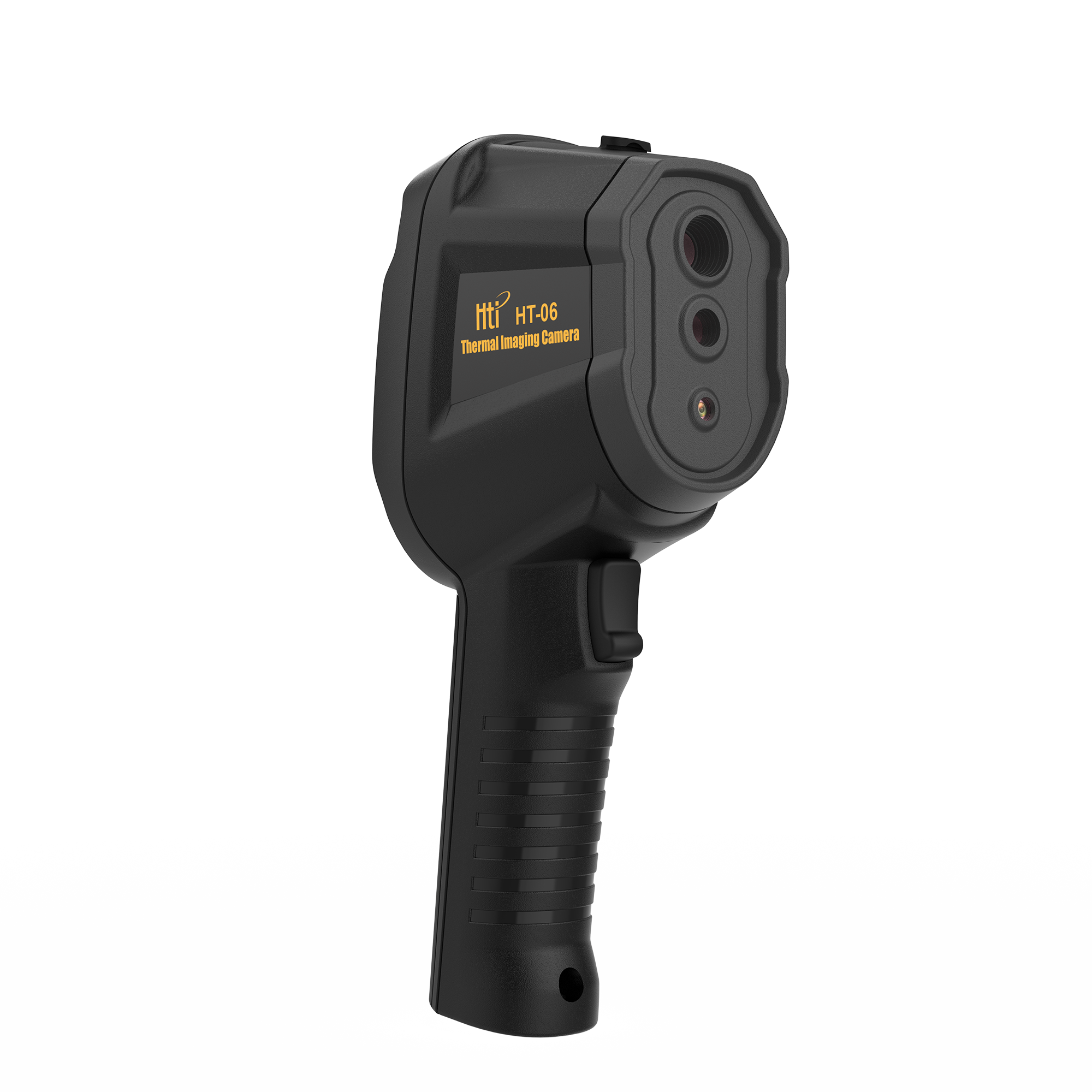

The HT 06 handheld thermal imaging system innovatively integrates a 256×192 infrared sensor with a 640×480 HD visible-light camera, featuring five professional color palettes (Rainbow, Iron, Cold, White Hot, Black Hot). Its intelligent dual-spectrum fusion technology simultaneously displays thermal distribution and visual details, making it a versatile professional tool for electrical maintenance, building diagnostics, and security patrols.

infrared thermogram

Technical Parameter

Model	HT 06
Display screen	2.8" full angle TFT display screen
Infrared image resolution	256×192
Visible image resolution	640×480
Foc us length	3.2mm
Field angle	56°×42°
IFOV	3.75mrad
Pixel spacing	12μm
Frame rate	≤25Hz
Focusing mode	Non-heating fixed focus lens
NETD	≤50mk@25°C, @F/1.0
Wavelength coverage	8~14μm
Emissivity	Adjustable from 0.01 to 1.0
Color palette	Rainbow, Iron, Cold color, White hot, Black hot
Software analysis & Video	Support
Measuring range	-20°C~550°C
Accuracy	-15°C~550°C（±2°C 或 ±2%）; -20°C~-15°C ±4°C
Setting	Unit, Language, Date, Time, Format, Auto power-off
Storage capacity	Built-in 4G eMMC (user available storage space is about 3G)
Language	Chinese, English, German, Italian
Specifications
File format	JPG/MP4
Power interface	Type-C
Battery type	Built-in 18650 battery
Battery capacity	2000mAh
Work temperature	0°C~45°C (32°F~113°F)
Working time	2 - 3 hours
Storage temperature	-20°C~+60°C (-4°F~140°F)
Product size	96×72×226mm
Relative humidity	10%RH~85%RH
Product weight	375g
