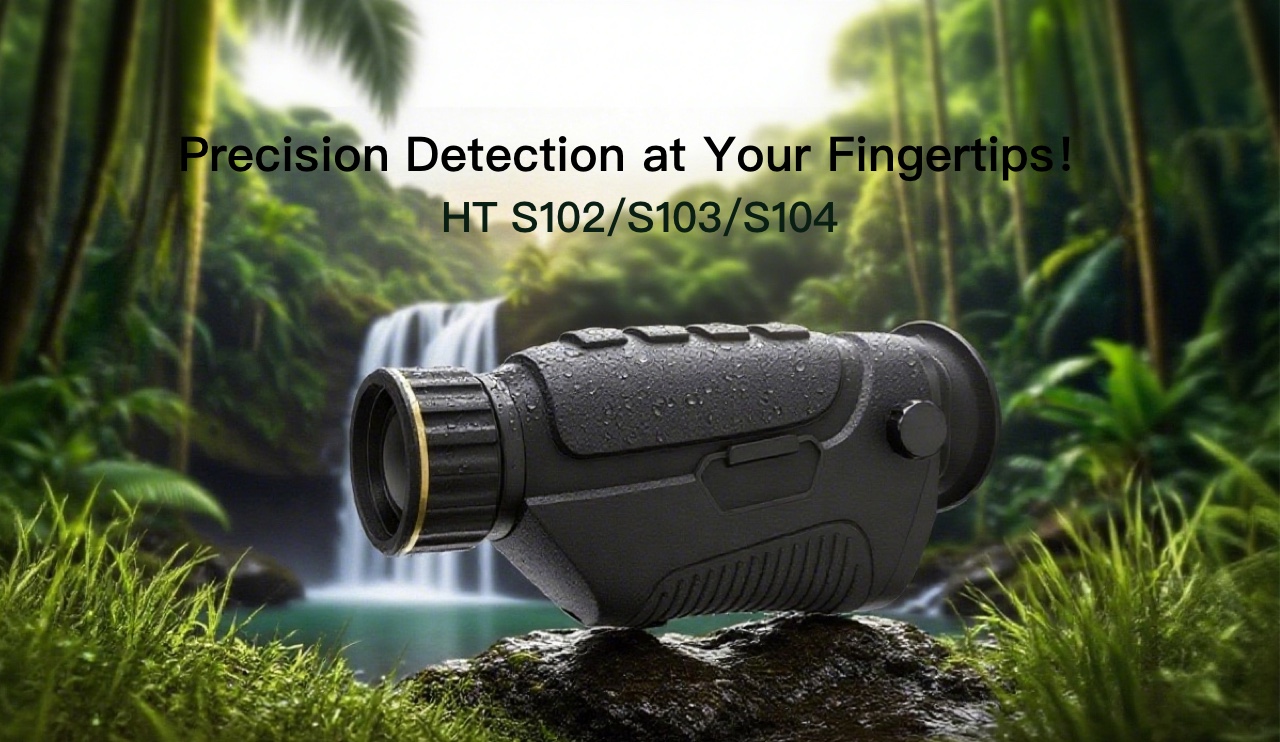

HT S102/S103/S104 Monocular Thermal Imager

 new

【Professional Recommendation】 The Xintai HT S102/S103/S104 series is a monocular handheld infrared telescope engineered for outdoor environments. As a high-performance infrared thermal thermometer, it integrates single-lens temperature measurement technology, offering core advantages of precise imaging, rapid temperature reading, and a lightweight, portable design. Whether for night scouting, industrial inspection, security patrols, or outdoor search and rescue, it provides clear thermal images and reliable temperature data. Choose the Xintai HT series today and experience the superior performance of a professional-grade thermal monocular.

Professional-Grade Imaging & Exceptional Performance

High-Definition IR Resolution for Unmatched Clarity: The entire series utilizes advanced vanadium oxide (VOx) detectors, offering tiered infrared resolution from 256×192 (HT S102) up to 640×512 (HT S104). Higher resolution delivers sharper, more detailed imagery, allowing you to discern distant targets with precision.
Superb Thermal Sensitivity to Detect the Subtlest Differences: With an exceptional Noise Equivalent Temperature Difference (NETD) as low as ≤25 mK (HT S104), the device is extremely sensitive to minute temperature variations. This enables easy identification of concealed targets or early-stage thermal anomalies, performing superbly in low-visibility conditions like smoke, fog, or haze.
Powerful Detection Range for Long-Distance Advantage: The series can detect human-sized targets at distances ranging from 1,180m to 1,653m, and vehicle-sized targets from 3,125m to 4,375m. This provides critical reaction time for field surveys, security patrols, and search-and-rescue operations.
Rugged, Portable & Built for Endurance: Featuring an IP65 protection rating, it stands firm against rain and dust. Its lightweight design (starting from 355g), combined with an ultra-long battery life of up to 7 hours (HT S102), ensures reliable operation throughout your entire mission cycle.
Smart & Practical Features for Efficient Operation: Equipped with Auto Hot Spot Tracking and Picture-in-Picture (PIP) functions to quickly lock onto and magnify high-temperature targets. Multiple color palettes are available to suit different observation preferences and scenario requirements.

Precision Detection at Your Fingertips！

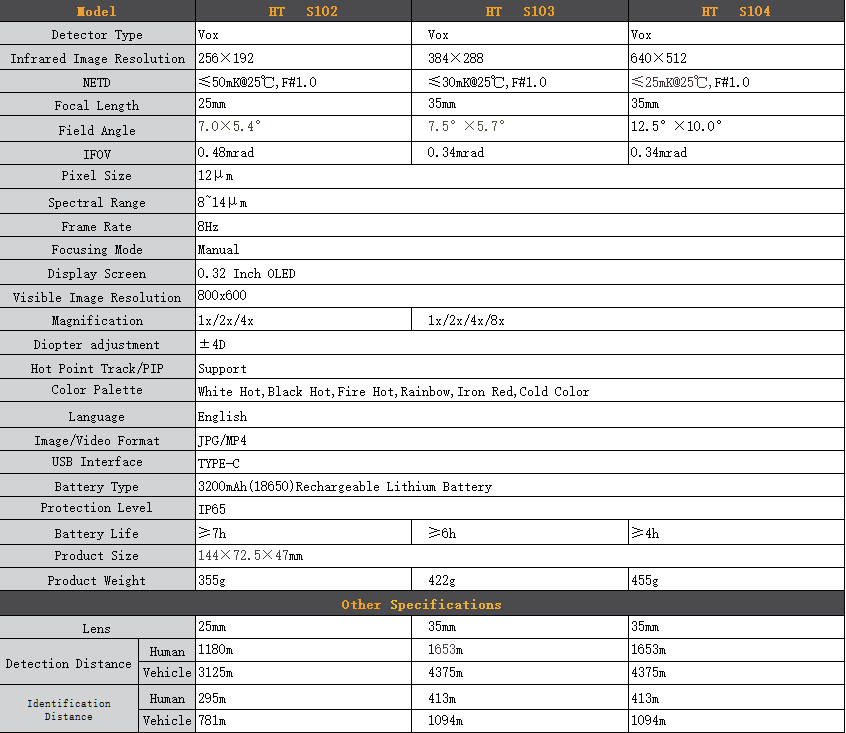

The HT S102/S103/S104 series infrared thermal imagers deliver exceptional performance to meet professional demands. Equipped with high-sensitivity infrared detectors, they offer multiple resolution options (256×192, 384×288, 640×512), clearly presenting thermal distribution with every detail in view.

With optional 25mm/35mm dual-focal-length lenses, these imagers adapt to different observation distances, allowing flexible switching between long-range detection and wide-area monitoring. A high frame rate of 50Hz ensures smooth tracking of dynamic targets—free from blurring or lag—for stable, real-time imaging.
