| Model | HT A1201 | HT A1101 | HT A1102 |
| Detector type | Vox | ||
| Infrared image resolution | 256×192 | 384×288 | 640×512 |
| Pixel Spacing | 12μm | ||
| Focal length | 25mm | ||
| FOV | 10.5×7.9 | ||
| Spectral Range | 8~14μm | ||
| NETD | ≤30mk@25℃, @F#1.0 | ||
| Frame Rate | 50Hz | ||
| Focusing Mode | Manual | ||
| Display Screen | 2.69 inch OLED | ||
| Visible Image Resolution | 800 × 600 | ||
| PIP | Support | ||
| Color Palette | White Hot, Black Hot, Cold Color, Red Hot, Rainbow, Iron Red | ||
| Language | Simplified Chinese,Traditional Chinese,English,German,French,Spanish,Dutch,Czech,Italian,Portuguese | ||
| Storage Capacity | Built-in 16GB(Available storage space is 13.8GB) | ||
| Image/Video Format | JPG/MP4 | ||
| USB Interface | Charge/Image and video export/Ranging range | ||
| Battery Type | 3500mAh（18650battery）Rechargeable lithium battery | ||
| Protection Level | IP66 | ||
| Working Time | ≥5h | ||
| Product Size | 104×110.5×87mm | ||
| Product Weight | 500g | ||
| Other Specifications | |||
| Lens | 25mm | 35mm | |
| Detection Distance | Human：1.7m × 0.5m × 0.3m | 295m | 1653m |
| Detection Distance | Vehcle：4.5m x 2.0m x 1.5m | 781m | 4375m |
| Identification Distance | Human：1.7m x 0.5m x 0.3m | 1180m | 413m |
| Identification Distance | Vehcle：4.5m x 2.0m x 1.5m | 3125m | 1094m |

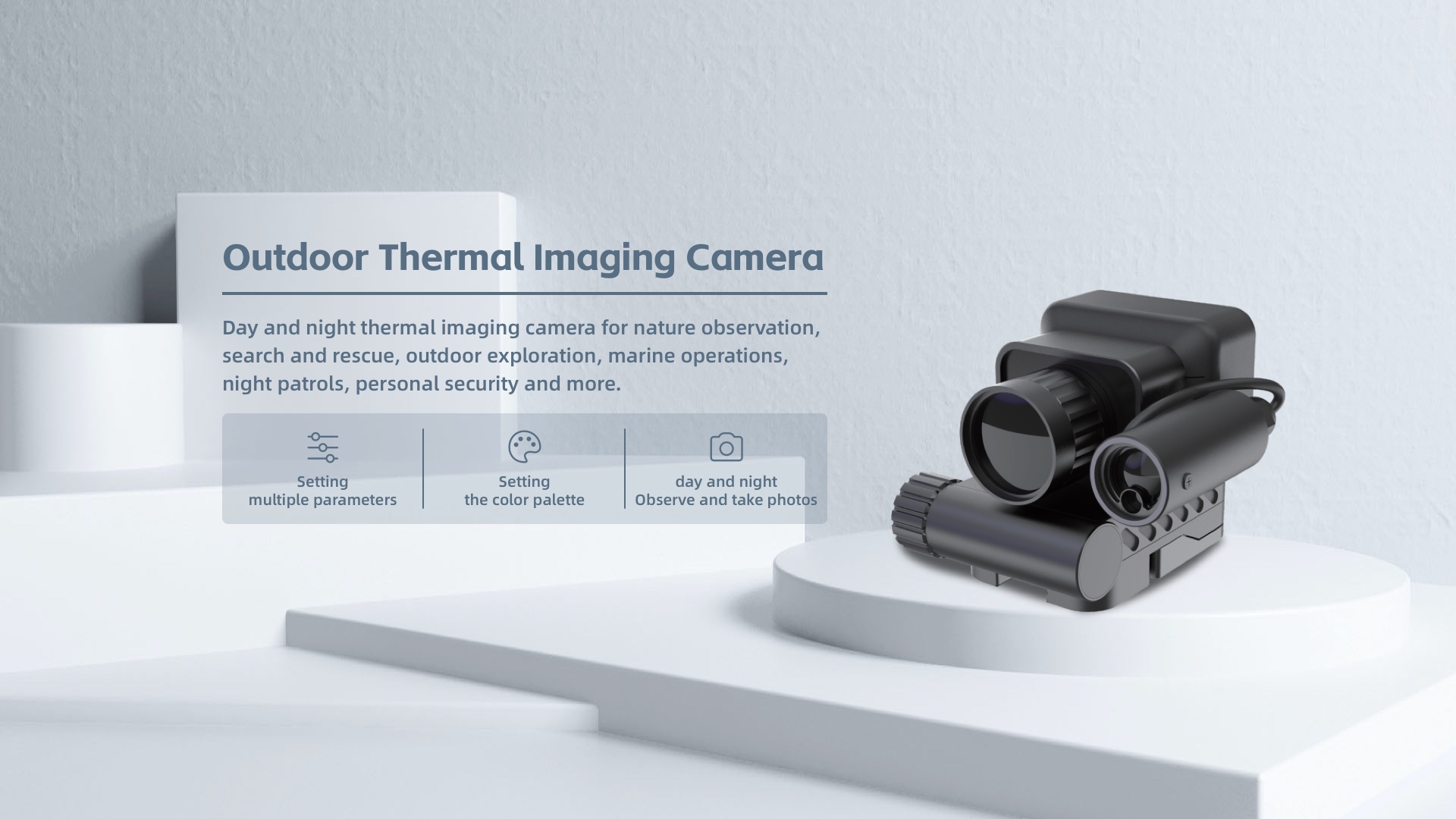

HT A1201/A1101/A1102 Monocular Thermal Imager
Thermal imager designed for long-range observation. When paired with a 35mm lens, it can detect vehicle targets up to 4,375 meters away. Featuring high-definition image quality and long battery life, it is the ideal thermal imaging equipment for border security, law enforcement, and field reconnaissance.
High-Definition Infrared Imaging, Revealing Every Detail
Equipped with an advanced vanadium oxide (Vox) detector, it delivers a high infrared resolution of 640×512 and a pixel size of 12μm. The imaging is sharp and detailed, enabling clear distinction of contours and structural differences in distant targets, thereby reducing misjudgment.
Exceptional Thermal Sensitivity for Detecting Minute Temperature Variations
With an NETD ≤ 30 mK, the device is extremely sensitive to even the slightest temperature differences. Whether searching for camouflaged targets or detecting thermal anomalies in equipment, faint temperature signals cannot escape its "watchful eye," ensuring you never miss critical details.
Powerful Optical System, a Pioneer in Long-Range Detection
Featuring a 25mm focal length lens, it is specifically designed for long-range observation. Its impressive detection and identification capabilities are highlighted below:
Detection Range: Capable of detecting personnel at 1,653 meters and vehicles at 4,375 meters.
Identification Range: Able to identify personnel at 413 meters and vehicles at 1,094 meters.
Multi-tier HD, Precision Thermal, Omni-domain Control!
HT A1201/A1101/A1102 Series Thermal Imagers deliver selectable resolutions (256×192/384×288/640×512) with 50Hz high frame rate for blur-free dynamic observation. The 800×600 high-sensitivity display renders detailed thermograms, while six professional color palettes (White Hot/Black Hot/Iron Hot/Rainbow/Iron Red/Cold) intelligently adapt to complex environmental requirements.
infrared thermogram
Technical Parameter
