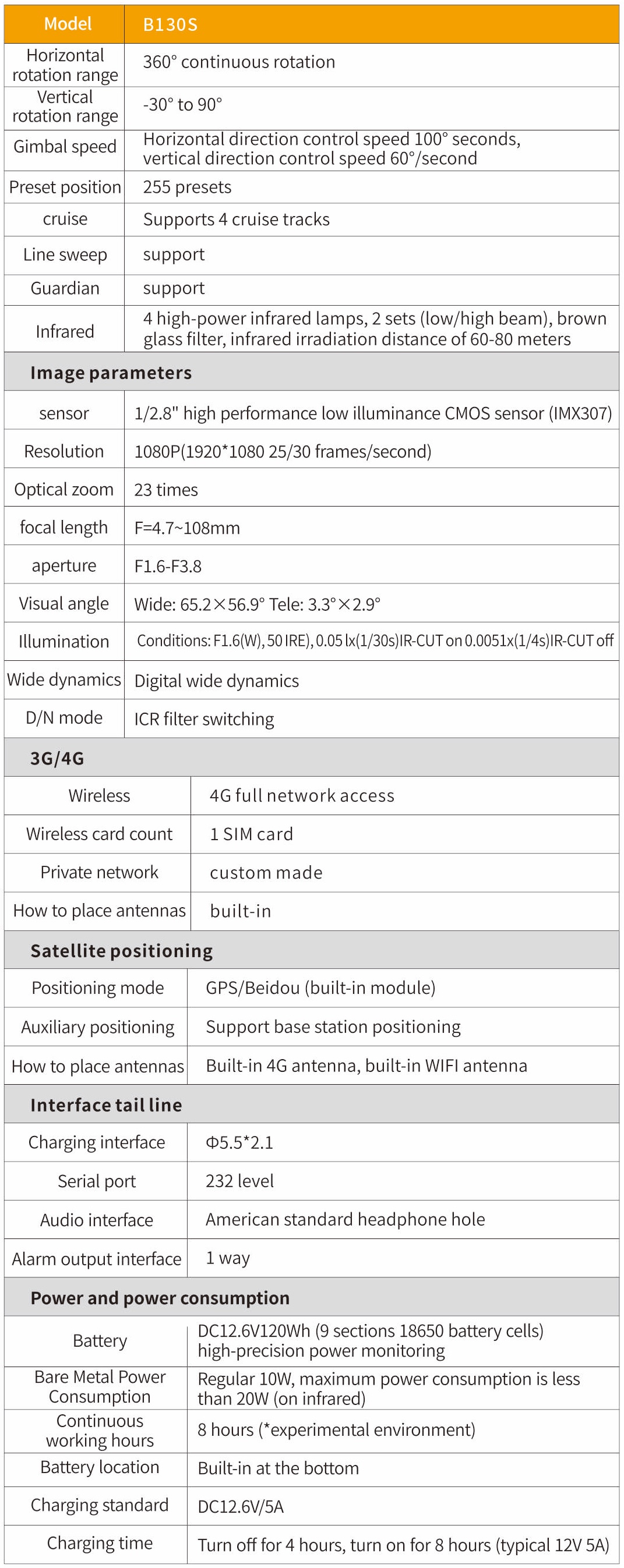

| Model | B130S |
| Horizontal rotation range | 360° continuous rotation |
| Vertical rotation range | -30° to 90° |
| Gimbal speed | Horizontal direction control speed 100°seconds, vertical direction control speed 60°/second |
| Preset position | 255 presets |
| cruise | Supports 4 cruise tracks |
| Line sweep | support |
| Guardian | support |
| Infrared | 4 high - power infrared lamps, 2 sets (low/high beam), brown glass filter, infrared irradiation distance of 60 - 80 meters |
| Image parameters | |
| sensor | 1/2.8" high performance low illuminance CMOS sensor (IMX307) |
| Resolution | 1080P(1920*1080 25/30 frames/second) |
| Optical zoom | 23 times |
| focal length | F = 4.7~108mm |
| aperture | F1.6 - F3.8 |
| Visual angle | Wide: 65.2×56.9°; Tele: 3.3°×2.9° |
| Illumination | Conditions: F1.6(W), 50IRE), 0.05 lx(1/30s)IR - CUT on 0.0051x(1/4s)IR - CUT off |
| Wide dynamics | Digital wide dynamics |
| D/N mode | ICR filter switching |
| 3G/4G | |
| Wireless | 4G full network access |
| Wireless card count | 1 SIM card |
| Private network | custom made |
| How to place antennas | built - in |
| Satellite positioning | |
| Positioning mode | GPS/Beidou (built - in module) |
| Auxiliary positioning | Support base station positioning |
| How to place antennas | Built - in 4G antenna, built - in WIFI antenna |
| Interface tail line | |
| Charging interface | Φ5.5*2.1 |
| Serial port | 232 level |
| Audio interface | American standard headphone hole |
| Alarm output interface | 1 way |
| Power and power consumption | |
| Battery | DC12.6V120Wh (9 sections 18650 battery cells), high - precision power monitoring |
| Bare Metal Power Consumption | Regular 10W, maximum power consumption is less than 20W (on infrared) |
| Continuous working hours | 8 hours (*experimental environment) |
| Battery location | Built - in at the bottom |
| Charging standard | DC12.6V/5A |
| Charging time | Turn off for 4 hours, turn on for 8 hours (typical 12V 5A) |
B130S
Emergency ball control machine
ModelB130SHorizontal rotation range360 continuous rotationVertical rotation rang
1/2.8" high performance low illuminance CMOS sensor (lMX307)
Lightweight integrated portable emergency layout control
High definition video 1080P/2 megapixel high-definition movement/CMOS sensor
High definition 23x zoom for clearer imaging and longer viewing range
4G full network remote wireless video transmission,real-time smooth image
Technical Parameter
