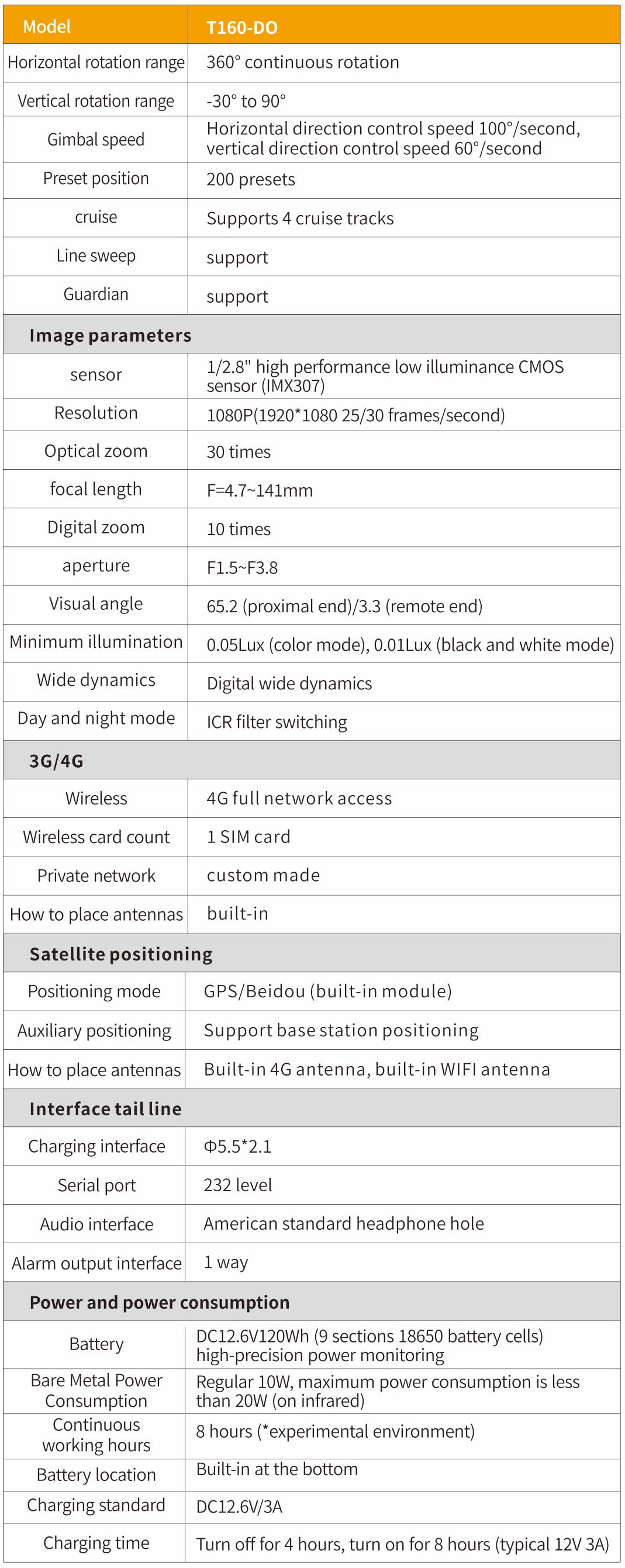

| Model | T160-DO |
| Horizontal rotation range | 360°continuous rotation |
| Vertical rotation range | -30°to 90° |
| Gimbal speed | Horizontal direction control speed 100°/second, vertical direction control speed 60°/second |
| Preset position | 200 presets |
| cruise | Supports 4 cruise tracks |
| Line sweep | support |
| Guardian | support |
| Image parameters | |
| sensor | 1/2.8" high performance low illuminance CMOS sensor (IMX307) |
| Resolution | 1080P(1920*1080 25/30 frames/second) |
| Optical zoom | 30 times |
| focal length | F = 4.7~141mm |
| Digital zoom | 10 times |
| aperture | F1.5 - F3.8 |
| Visual angle | 65.2 (proximal end)/3.3 (remote end) |
| Minimum illumination | 0.05Lux (color mode), 0.01Lux (black and white mode) |
| Wide dynamics | Digital wide dynamics |
| Day and night mode | ICR filter switching |
| 3G/4G | |
| Wireless | 4G full network access |
| Wireless card count | 1 SIM card |
| Private network | custom made |
| How to place antennas | built - in |
| Satellite positioning | |
| Positioning mode | GPS/Beidou (built - in module) |
| Auxiliary positioning | Support base station positioning |
| How to place antennas | Built - in 4G antenna, built - in WIFI antenna |
| Interface tail line | |
| Charging interface | Φ5.5*2.1 |
| Serial port | 232 level |
| Audio interface | American standard headphone hole |
| Alarm output interface | 1 way |
| Power and power consumption | |
| Battery | DC12.6V120Wh (9 sections 18650 battery cells), high - precision power monitoring |
| Bare Metal Power Consumption | Regular 10W, maximum power consumption is less than 20W (on infrared) |
| Continuous working hours | 8 hours (*experimental environment) |
| Battery location | Built - in at the bottom |
| Charging standard | DC12.6V/3A |
| Charging time | Turn off for 4 hours, turn on for 8 hours (typical 12V 3A) |
T160-DO
Dual light 4G wireless thermal imaging ball controlmachine
ModelT160-DOHorizontal rotation range360continuous rotationVertical rotation ran
High-definition large-magnitude zoom camera
Highly sensitive infrared thermal imaging
High-definition large-magnitude zoom camera
Supports GPS/Beidou, supports trajectory positioning
Integrated structural design, protection level up to lP66
Technical Parameter
