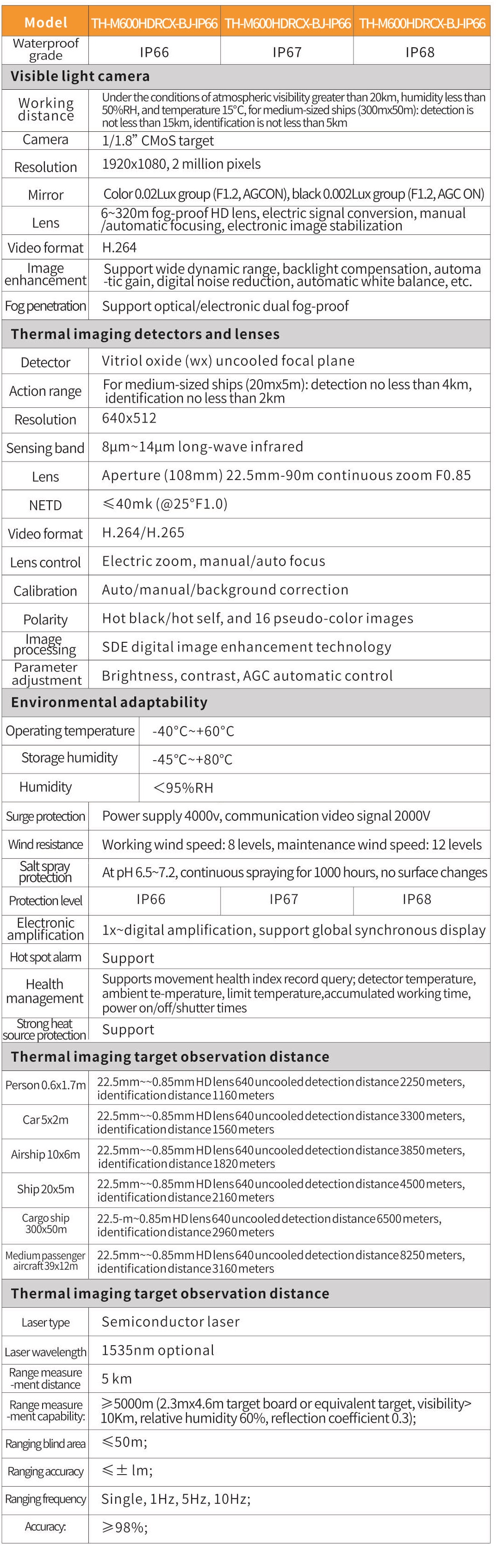

| Model | TH-M600HDRCX-BJ-IP66 | TH-M600HDRCX-BJ-IP67 | TH-M600HDRCX-BJ-IP68 |
| Waterproof grade | IP66 | IP67 | IP68 |
| Visible light camera | |||
| Working distance | Under the conditions of atmospheric visibility greater than 20km, humidity less than 50%RH, and temperature 15°C, for medium-sized ships (300mx50m): detection is not less than 15km, identification is not less than 5km | ||
| Camera | 1/1.8” CMoS target | ||
| Resolution | 1920x1080, 2 million pixels | ||
| Mirror | Color 0.02Lux group (F1.2, AGCON), black 0.002Lux group (F1.2, AGCON) | ||
| Lens | 6~320m fog-proof HD lens, electric signal conversion, manual/automatic focusing, electronic image stabilization | ||
| Video format | H.264 | ||
| Image enhancement | Support wide dynamic range, backlight compensation, automatic gain, digital noise reduction, automatic white balance, etc. | ||
| Fog penetration | Support optical/electronic dual fog-proof | ||
| Thermal imaging detectors and lenses | |||
| Detector | Vitriol oxide (wx) uncooled focal plane | ||
| Action range | For medium-sized ships (20mx5m): detection no less than 4km, identification no less than 2km | ||
| Resolution | 640x512 | ||
| Sensing band | 8μm~14μm long-wave infrared | ||
| Lens | Aperture (108mm) 22.5mm - 90m continuous zoom F0.85 | ||
| NETD | ≤40mk (@25°F1.0) | ||
| Video format | H.264/H.265 | ||
| Lens control | Electric zoom, manual/auto focus | ||
| Calibration | Auto/manual/background correction | ||
| Polarity | Hot black/hot self, and 16 pseudo-color images | ||
| Image processing | SDE digital image enhancement technology | ||
| Parameter adjustment | Brightness, contrast, AGC automatic control | ||
| Environmental adaptability | |||
| Operating temperature | -40°C~+60°C | ||
| Storage humidity | -45°C~+80°C | ||
| Humidity | <95%RH | ||
| Surge protection | Power supply 4000v, communication video signal 2000V | ||
| Wind resistance | Working wind speed: 8 levels, maintenance wind speed: 12 levels | ||
| Salt spray protection | At pH 6.5~7.2, continuous spraying for 1000 hours, no surface changes | ||
| Protection level | IP66 | IP67 | IP68 |
| Electronic amplification | 1x~digital amplification, support global synchronous display | ||
| Hot spot alarm | Support | ||
| Health management | Supports movement health index record query; detector temperature, ambient te-mperature, limit temperature, accumulated working time, power on/off/shutter times | ||
| Strong heat source protection | Support | ||
| Thermal imaging target observation distance | |||
| Person 0.6x1.7m | 22.5mm~~0.85mm HD lens 640 uncooled detection distance 2250 meters, identification distance 1160 meters | ||
| Car 5x2m | 22.5mm~~0.85mm HD lens 640 uncooled detection distance 3300 meters, identification distance 1560 meters | ||
| Airship 10x6m | 22.5mm~~0.85mm HD lens 640 uncooled detection distance 3850 meters, identification distance 1820 meters | ||
| Ship 20x5m | 22.5mm~~0.85mm HD lens 640 uncooled detection distance 4500 meters, identification distance 2160 meters | ||
| Cargo ship 300x50m | 22.5mm~~0.85mm HD lens 640 uncooled detection distance 6500 meters, identification distance 2960 meters | ||
| Medium passenger aircraft 39x12m | 22.5mm~~0.85mm HD lens 640 uncooled detection distance 8250 meters, identification distance 3160 meters | ||
| Thermal imaging target observation distance | |||
| Laser type | Semiconductor laser | ||
| Laser wavelength | 1535nm optional | ||
| Range measurement distance | 5 km | ||
| Range measurement capability | ≥5000m (2.3mx4.6m target board or equivalent target, visibility>10Km, relative humidity 60%, reflection coefficient 0.3); | ||
| Ranging blind area | ≤50m; | ||
| Ranging accuracy | ≤±1m; | ||
| Ranging frequency | Single, 1Hz, 5Hz, 10Hz; | ||
| Accuracy | ≥98%; | ||
TH-M600HDRCX-BJ
Multi-spectral laser tracking night vision system
ModelTH-M600HDRCX-BJ-IP66TH-M600HDRCX-BJ-IP67TH-M600HDRCX-BJ-IP68Waterproof grad
Strongwind resistance, high precision, good stability;
The shell adopts die-casting technology, and the prot-ection level reaches lp67;
Integrates automatic tracking module and precision electronic control system;
Technical Parameter
