| Project | Parameter |
| SONY sensor for wide-angle lens of visible light camera | |
| Size | 1/2-inch CMOS |
| Valid graphic element | 48MP |
| Resolution | 8000 (H) × 6000 (V) |
| Aperture | F / 2.8 |
| Focal length | The F 4.49 mm |
| FOV Diagonal | DFOV 83.4° |
| Video/photo format | Encoding format: H.265/H.264; image format: JPG;Video format: MP4 |
| Storage | It comes with a 128G microSD card |
| Resolution | Photo: 48MP; Video: 4K30fps |
| AI | Basic aerial perspectives of people, vehicles and ships |
| 9.1mm lens - Infrared thermal imaging | |
| Spectrum | 8μm - 14μm |
| Resolution | 640 x 512 pixels |
| Sensor size | 12 * 12μm |
| Focal length | 9.1mm (equivalent focal length 40mm) |
| NETD | ≤50mK@F1.0 (@25℃) |
| Color palette | White Heat/Flash Iron/Iron red/hot iron/Medical/Arctic/Rainbow 1/Rainbow 2/Hot/Black Heat |
| Digital zoom | 1X、 2X、 4X、 8X |
| Storage temperature | -40℃~70℃ |
| Working temperature | -10℃~50℃ |
| Frame rate | 30 frames per second |
| 1500m laser rangefinder | |
| Scope | 5-1500m |
| Resolution | 0.1m |
| Measurement accuracy | 1m |
| Wavelength | 905 nm |
| Beam divergence Angle | 3.2MRAD |
| Accuracy | Accuracy:+/-1m |
| holder | |
| Temperature | -10~40℃ |
| Agreement | UART/UDP/S.BUS/Mavlink2.0 |
| IEC 60529 standard | IP44 protection rating |
| Pan-tilt range | Yaw range: ±45°Rolling range: -45°to +45°Pitch range: -140°to +50° |
T27

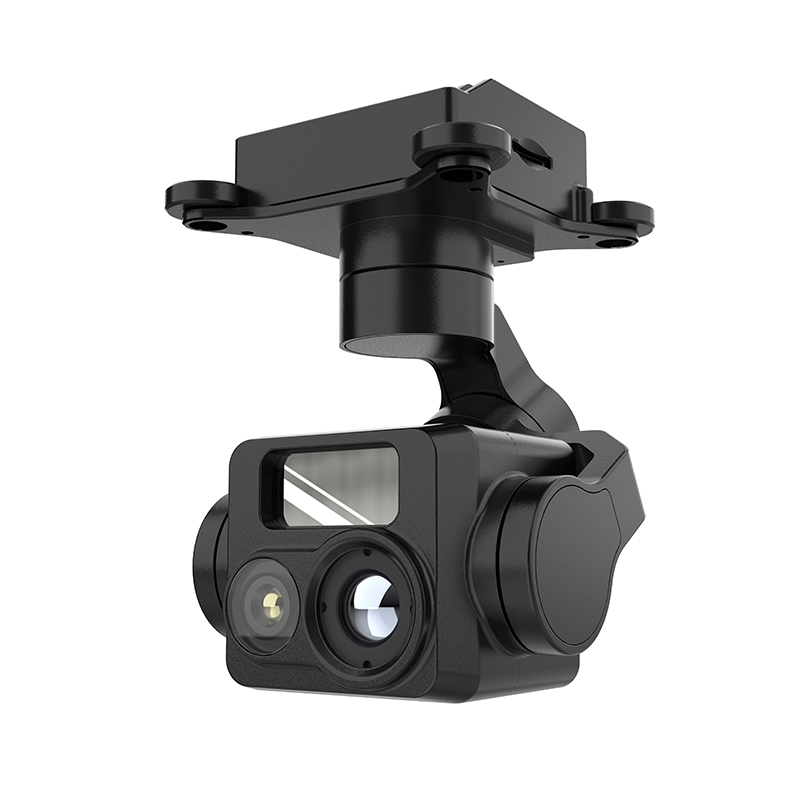

T27 Tri-optical gimbal camera
T27 Tri-optical gimbal camera: 48MP SONY 1/2" CMOS wide-angle lens, 4K30fps+H.265, 83.4 field of view; 640512 infrared thermal imaging, 30fps, 8-14μm wavelength range, 1-8x digital zoom, NETD less than or equal to 50mK; 1500m laser rangefinder with 1m accuracy. IP44 protection rating, 45 yaw/pitch range -140 to +50, UART/UDP/MAVLink 2.0 protocols, 128GB storage, operating temperature -40C to 70C. Suit for drone inspection, search and rescue, security surveillance, and aerial photography.
32x digital zoom &48 million pixels:Equipped with a 4800W pixel wide-angle visible light camera, it can achieve 32 times digital zoom, ensuring clear images both near and far, and can lock onto distant targets in just seconds.
6T computing power for editable AI:Equipped with a 6T computing power smart camera, it deploys AI models to achieve recognition and target tracking, and is suitable for scenarios such as security and search and rescue.
1.5KM distance measurement:Supports a maximum distance measurement of 1.5KM and is equipped with 640×512 infrared and laser ranging for rapid target location, with no blind spots day or night.
Arbitrary split-screen:The rich image configuration of split-screen display with any sensor combination is intelligent and fast, improving work efficiency. It is your best choice.
Technical Parameter
